Controller for chamber (shelf) furnaces

Controller for chamber (shelf) furnaces

Controller with 4-inch touch panel. Made in two housing versions:

1. Front plate made of polished acid-proof steel, side housing and rear lid made of aluminum.

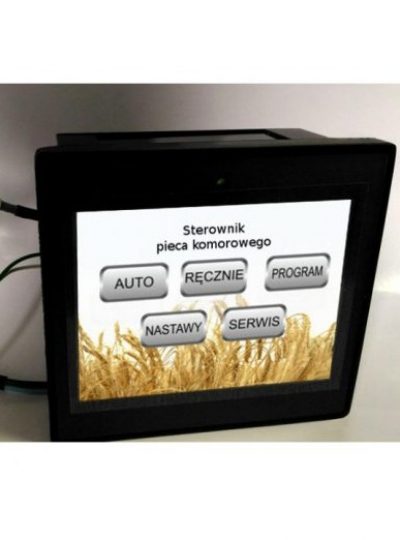

2. Black plastic housing.

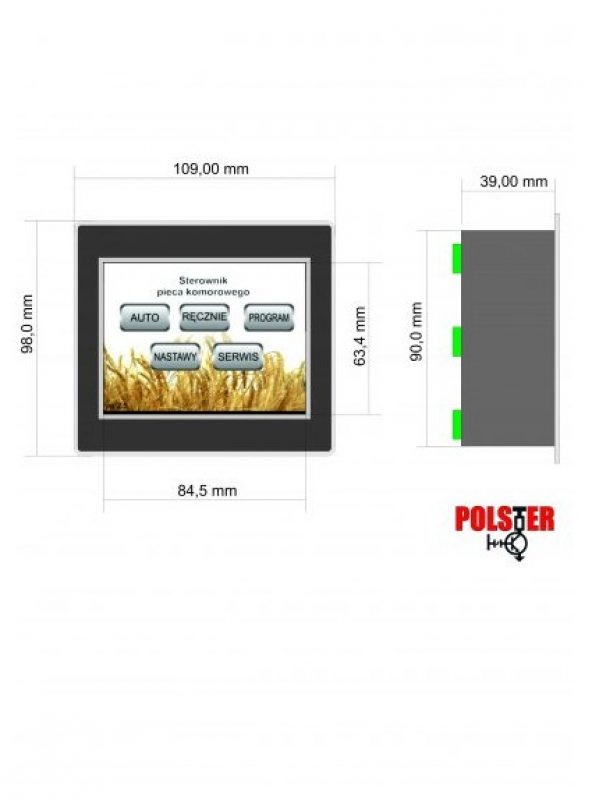

The controller is adapted for mounting in a 90x90mm hole using two displacement brackets.

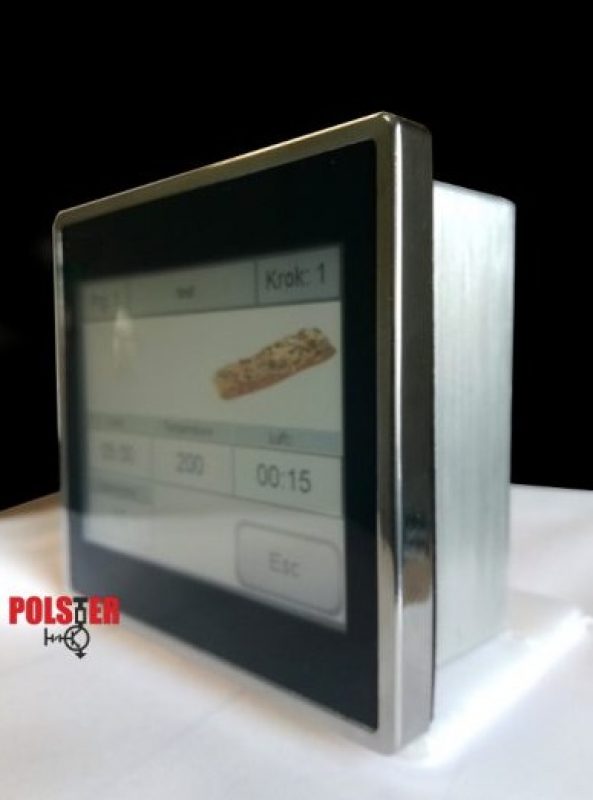

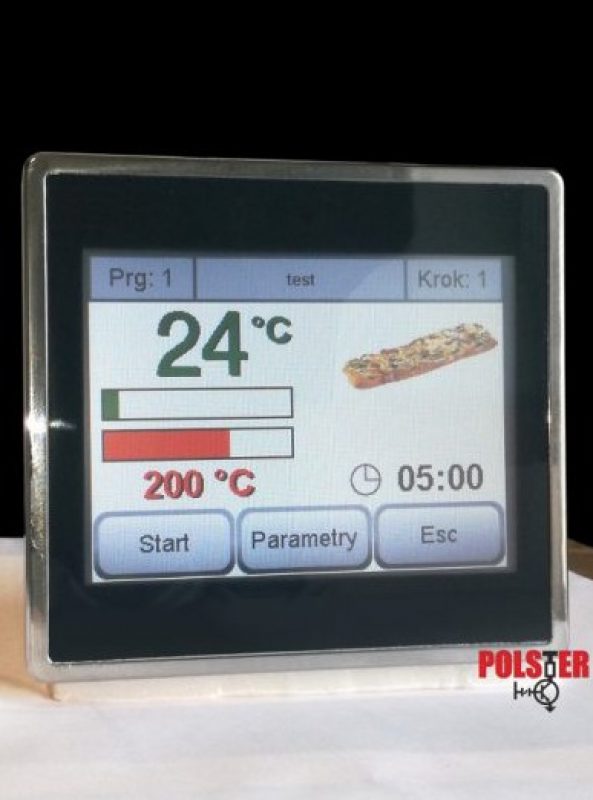

Pictures of a 4-inch controller with a touch panel

Controllers for baking ovens (batch, rotary, shelf)
Controllers for baking ovens (batch, rotary, shelf)
Controllers for baking ovens (batch, rotary, shelf)
Controllers for baking ovens (batch, rotary, shelf)

Technical parameters

- 1 relay output

- 1 DC output

- 1 230V AC triac output

- 1 thermocouple temperature measurement input, type k

- built-in mini USB interface for connecting a PC - console / software change program

- built-in real time clock (RTC)

- recipe memory

- jpg memory for recipe identification

- power supply: 230V AC or 24V DC
