Control panel meeting military standards

Control panel meeting military standards

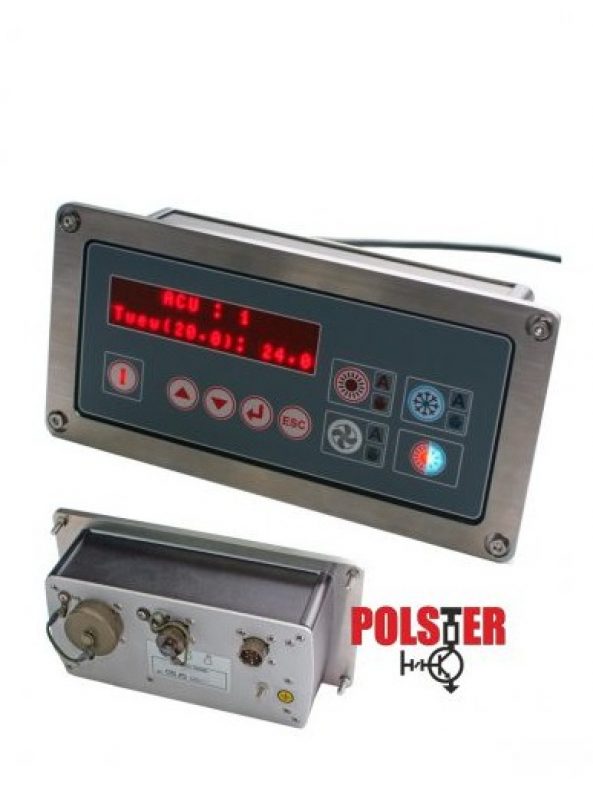

Operator panel for the air conditioner control system.



Technical parameters of the air conditioning controller:



Operator Panel:

- RS 485 interface (separated)

- ethernet (Modbus TCP / IP slave option)

- RS232 connector for software update

- power supply: 24 V DC from the built-in power supply of the controller



Controller:

- RS 485 interface (separated)

- 1 230V AC triac output

- 11 relay outputs

- 3 12V transistor outputs

- 9 digital 24V inputs

- 1 analogue input 4-20mA for pressure measurement

- 4 PT100 measuring paths (3-wire)

- RS232 connector for software update

- power supply: 24 V AC

Pictures:

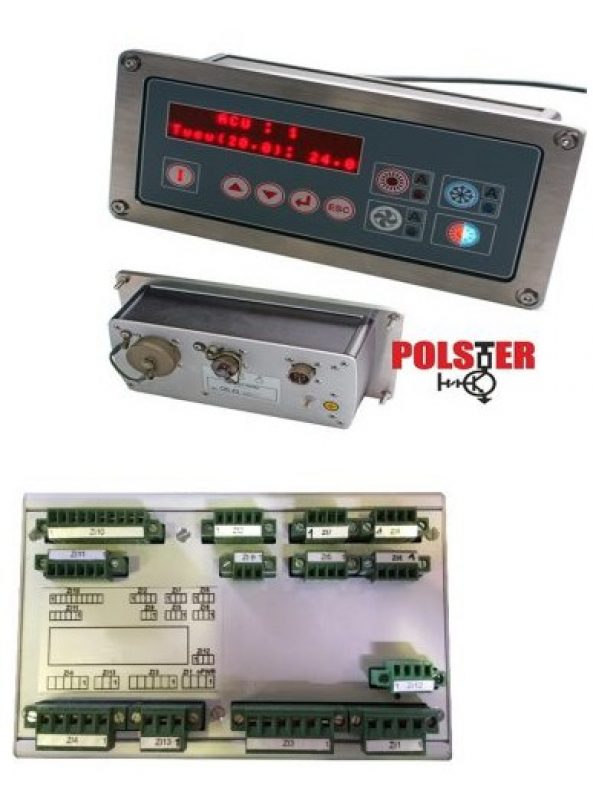

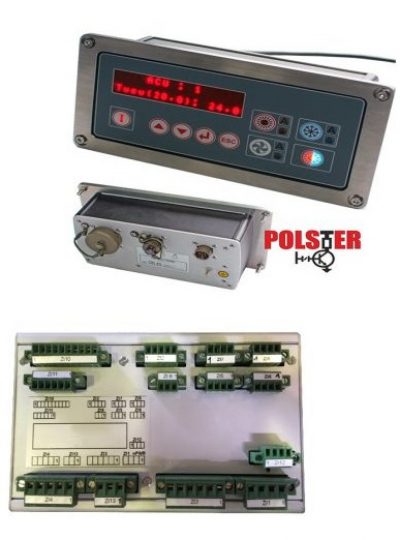

Air conditioning controller meeting military standards
Air conditioning controller meeting military standards
