Control system for confectionery depositor

Control system for confectionery depositor

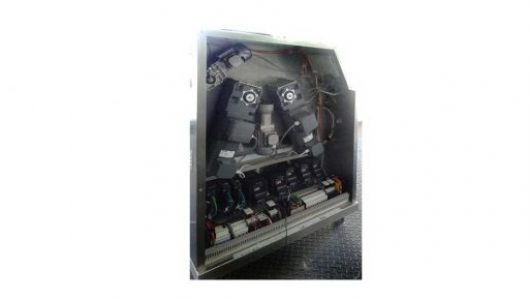

The control system is based entirely on OMRON components.

The logical unit is the PLC: NX1P2 communicating via the EtherNet network with the operator panel: NB10W visualizing the current operating parameters.

Remote monitoring, diagnostics and updating of machine programs is done via the Internet using a VPN tunnel.

The EtherCat communication protocol provides stable communication with inverters an other drives.
- R88D-1S series servo drive ... - table up and down movement

-Servo drive series R88D-1S ... - table left-right movement

-Servo R88D-1S series drive ... -forward-backward tape movement

- Inverter 3G3 MX2 ... - pump 1

- Inverter 3G3 MX2 ... - pump 2

- Inverter 3G3 MX2 ... - heads

- Inverter 3G3 MX2 ... - slicer

Option to choose options:

-1 or 2 pumps

-dough cutter
