Control system for spiral mixer

Control system for spiral mixer

The control system is based on OMRON components and a dedicated POLSTER operator panel.

The logical unit is the PLC: CP1L communicating via the HOST LINK protocol with the operator panel: S44v4 visualizing the current operating parameters

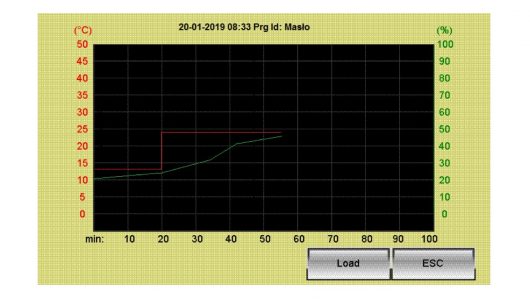

- displaying parameter charts about the currently running program

The design and scope of the machine's operation allow for an economical approach, i.e. control of executive drives using digital outputs.

- analog module for measuring the water and dough temperature as well as the agitator motor current.

-engine 2 gears - mixing arm

-engine with a choice of direction of rotation - bowl

As an option - the ability to control an additional drive for dosing flour.

- Inverter 3G3 MX2 ... - dosing
